| 基礎材料: | FR-4 | 銅の厚さ: | 1/2OZ 1OZ 2OZ 3OZ |
|---|---|---|---|
| 板の厚さ: | 2mm | 穴の大きさ: | 0.1mm |
| 線幅の最小限: | 0.065mm | 線間隔を最小限にする: | 0.065mm |
| 表面仕上げ: | HASL | 製品名: | 電池の管理システム |
| 適用する: | 電池のパック | 使用: | リチウム電池のパック |
| 層の数: | 3 層 | コミュニケーション: | はい |
| サイズ: | 180MM*100MM*18MM | 体重: | 0.375kg |
| 機能: | バランス機能 | 色: | シルバー |
| 材料: | Alumimum | 販売ユニット: | 単一の項目 |
| 単一パッケージサイズ: | 20X15X5 cm | 単体総重量: | 0.400 kg |
| パッケージの種類: | プラスチック包装およびカートン | ||
| ハイライト: | Alumimum Lithium Ion Battery BMS Board,Ant Bluetooth BMS 20S 72V,Alumimum Ant Bluetooth BMS |
||

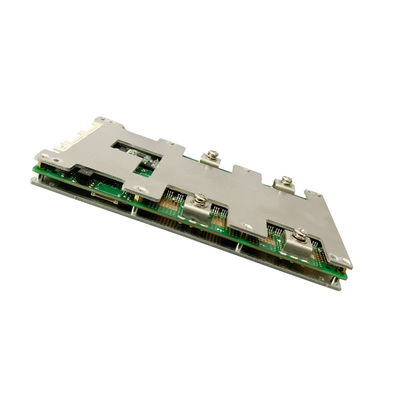

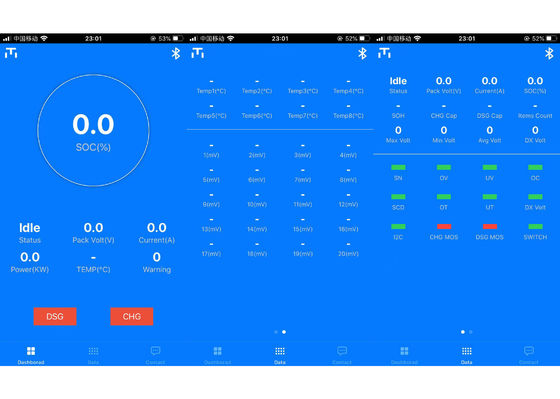

20S 72V Lithium Ion Battery Smart BMS Battery RS232 Bluetooth APP 50A 100A 200a
Smart BMS Battery Description:
Battery protection board, as the name suggests, a lithium battery protection board is mainly an integrated circuit board that protects rechargeable batteries (usually lithium batteries). The reason why lithium batteries (rechargeable) need protection is determined by their own characteristics. Because the material of the lithium battery itself determines that it cannot be overcharged, over-discharged, overcurrent, short-circuited, or ultra-high temperature charge and discharge. The three basic functions of the lithium battery protection board are short circuit protection, overcharge protection, and over-discharge protection.
Smart BMS Battery Parameter:
|
|
Content |
Specification |
Unit |
|
Discharge
|
Continuous Discharge Current |
80 |
A |
|
Plus Discharge Current |
240±20 |
A |
|
|
Charge |
Charge cut-off voltage |
54.6 |
V |
|
Max charge current |
30(MAX) |
A |
|
|
Over Charge protection |
Overcharge detection voltage |
4.25±0.05 |
V
|
|
Overcharge detection delay time |
600±300 |
MS |
|
|
Overcharge release voltage |
4.15±0.05 |
V |
|
|
Balance Protection |
Balance Detection voltage |
4.18 |
V |
|
Balance release detection voltage |
4.18 |
V |
|
|
Balance current |
35±5 |
mA |
|
|
Over-discharge Protection |
Over-discharge detection voltage |
2.7±0.05 |
V
|
|
Over-discharge detection delay time |
600±300 |
MS |
|
|
Over-discharge release voltage |
3.0±0.05 |
V |
|
|
Overcurrent Protection |
Overcurrent detection voltage |
100 |
mV |
|
Overcurrent protection current |
135±20 |
A |
|
|
Overcurrent detection delay time |
600±300 |
MS |
|
|
Release condition |
Cut short load |
|
|
|
Short Protection |
Detection condition |
Out load short cycles |
|
|
Detection delay time |
300±100 |
uS |
|
|
Release condition |
Cut load |
|
|
|
Temp. protection |
Over Charge protection temp. |
-20~50 |
℃ |
|
Over Discharge protection temp. |
-20~70 |
|
|
|
Interior resistance |
The main loop electrifies the resistance |
≤10 |
mΩ |
|
Current consumption |
Current consumption in normal operation |
≤100 |
uA |
|
|
Sleep current(over-discharge) |
≤20 |
uA |
|
Working Temp. |
Temp.Range |
-20/80 |
℃
|
Smart BMS Battery FAQ:
1. How about the quality&warranty time?
All brand products are 100% imported. All products provided 12 monthly warranty.
2. What's the MOQ?
There is no MOQ for samples. For bulk order quantity, the more, the cheaper.
3. How about the lead time?
Usually, we have stable stock in the warehouse. The goods can be sent within 2-7 days.
4. How long of the shipping time?
lt always needs 3-10 days by expresses such as DHL and UPS,15-50 days by China Post, and 20-30 days by sea.
5. can you produce the order with the customer's brand?
Yes, of course.OEM & ODM service is warmly provided.
